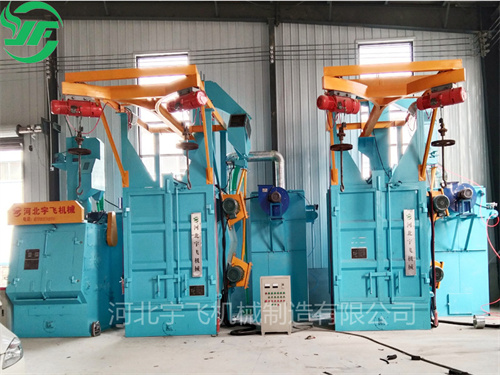

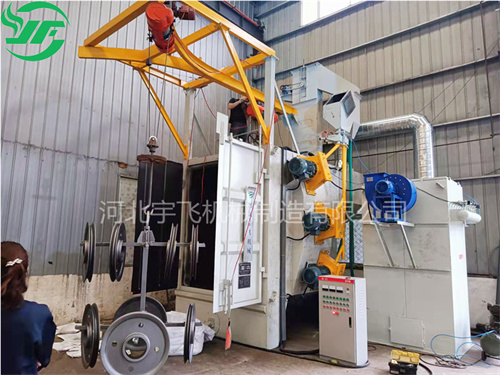

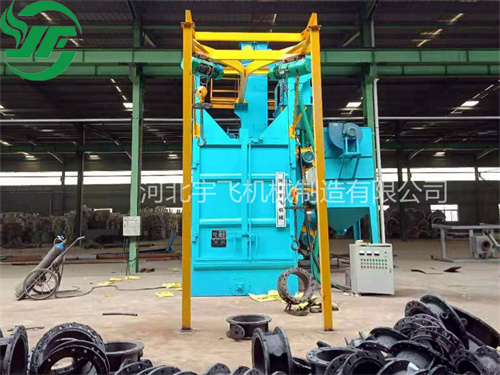

Q378吊鉤式拋丸清理機,尺寸可定做

吊鉤式拋丸機作為拋丸清理機的標準機型,其工作圓筒直徑從900到1300 mm, 高度從1300 到2200 mm.標準機型帶有2-7個拋頭,最大承載量達10000公斤,這款拋丸機的生產效率相當高,靈活性跨度...

歡迎咨詢

13315758887

產品詳情

吊鉤式拋丸清理機適合于鑄造、建筑、化工、電機、機床等行業的中、小型鑄、鍛件的表面清理或強化處理。特別適合于多品種、小批量的鑄件、鍛件、鋁合金鑄件及鋼結構件進行表面清理及拋丸強化,以去掉工件表面的少量粘砂、砂芯及氧化皮;亦適合于對熱處理件的表面清理及強化;尤其適合于不宜碰撞的細長、薄壁件的清理。

吊鉤式拋丸機具有以下優點:

. 采用大拋丸量、高拋射速度的國際先進懸臂式離心拋丸器,能顯著地提高清理率、獲得滿意的清理質量?! ?/span>

. 模擬拋射圖及拋丸機的全部圖紙均完全采用計算機輔助設計(CAD)繪制,拋丸器的選用及布置更為合理。

. 采用倍受歡迎的無地坑結構形式,即節省了地坑基礎的施工費用及時間,又解決了用戶因地坑存水而造成的提升機內的丸砂銹蝕結塊問題。吊鉤具有升降、運行和室內旋轉的功能。

. 清理室內采用高鉻板防護,使用壽命大大提高,外形美觀、易于更換。



Hook type shot blasting cleaning machine is suitable for surface cleaning or strengthening treatment of medium and small castings and forgings in casting, construction, chemical industry, motor, machine tool industry, etc.It is especially suitable for surface cleaning and shot blasting of many kinds and small batches of castings, forgings, aluminum alloy castings and steel structural parts, so as to remove a small amount of sand, sand core and oxide scale from the surface of the workpiece.Also suitable for surface cleaning and strengthening of heat-treated parts;It is especially suitable for the cleaning of slender and thin - walled parts not suitable for collision.

Hook type shot blasting machine has the following advantages:

1. The international advanced cantilever centrifugal shot blasting machine with large shot blasting volume and high projectile velocity can significantly improve the cleaning rate and obtain satisfactory cleaning quality.

2. All the simulated projectiles and drawings of shot blasting machine are completely drawn by computer-aided design (CAD). The selection and arrangement of shot blasting machine are more reasonable.

3. Adopting the popular form of landless pit structure, which not only saves the construction cost and time of the pit foundation, but also solves the problem of sand rusting and caking in the hoist caused by water storage in the pit.The hook has the function of lifting, running and indoor rotation.

4. Indoor cleaning with high chromium plate protection, greatly improve the service life, beautiful appearance, easy to replace.















名稱       Name

吊鉤式拋丸機Hook type shot blasting machine

吊鉤式拋丸機Hook type shot blasting machine

吊鉤式拋丸機Hook type shot blasting machine

吊鉤式拋丸機Hook type shot blasting machine

吊鉤式拋丸機Hook type shot blasting machine

吊鉤式拋丸機Hook type shot blasting machine

吊鉤式拋丸機Hook type shot blasting machine

型號Model

Q376

Q378

Q3710

Q3720

Q3730

Q3740

Q3750

清理工件外形尺寸Clean the workpiece dimensionsmm

Φ1000mm

H800mm

Φ1200mm

H1000mm

Φ1400mm

H1400mm

Φ1800mm

H2000mm

Φ2200mm

H2200mm

Φ2200mm

H3000mm

Φ2500mm

H4000mm

首次加入量       The weight of the first steel shot added t

0.3

0.35

0.4

0.45

0.55

0.8

1.0

拋丸器型號      Shot blasting type

Q034zz

Q034zz

Q034zz

Q034zz

Q034zz

Q034zz

   Q034zz

拋丸器功率       impeller head power(KW)

7.5KW

7.5KW

7.5KW

11KW

11KW

15KW

15KW

拋丸器數量    Number of shot blasting machines

2

2

2

3

3

4

5

拋丸量          Shot blasting amountkg/min

160

160

160

200

200

250

250

最大吊重       Maximum lifting weightkg

750

750

750

750

750

2200

4200

提升量        Lifting quantity t/h

25t/h

25t/h

25t/h

40t/h

40t/h

60t/h

60t/h

提升機功率Hoist powerkw

2.2KW

2.2KW

2.2KW

2.2KW

2.2KW

5.5KW

5.5KW

分離量Separation amountt/h

25t/h

25t/h

25t/h

40t/h

40t/h

60t/h

60t/h

  • 輸送量Transportation  amount

t/h

25t/h

25t/h

25t/h

40t/h

40t/h

60t/h

60t/h

螺旋輸送器功率Screw conveyor powerkw

1.5KW

1.5KW

1.5KW

2.2KW

2.2KW

3.0KW

3.0KW

通風量      Ventilation amount m³/h

4000

5000

7000

7500

8000

11000

15000

總功率Total Powerkw

23

23

23

43

43

80

95

機器外形尺寸(長xxMachine size (length × width × height)mm

4429×2850×4843

4560×2900×5209

5047×3850×6256

6844×4742×7020

7910×5800×7320

8150×5800×8650

9950×6800×9500



?
