懸鏈通過式拋丸清理機
通過式拋丸機吸取國內外同類產品有點設計制造,除銹工部主機(拋丸清理)采用了高效拋丸器,滿幕簾式丸砂分離器;清掃工部采用特制高強度尼龍滾刷和高壓風機二級清掃裝置;預...
通過式拋丸機吸取國內外同類產品有點設計制造,除銹工部主機(拋丸清理)采用了高效拋丸器,滿幕簾式丸砂分離器;清掃工部采用特制高強度尼龍滾刷和高壓風機二級清掃裝置;預...
產品詳情

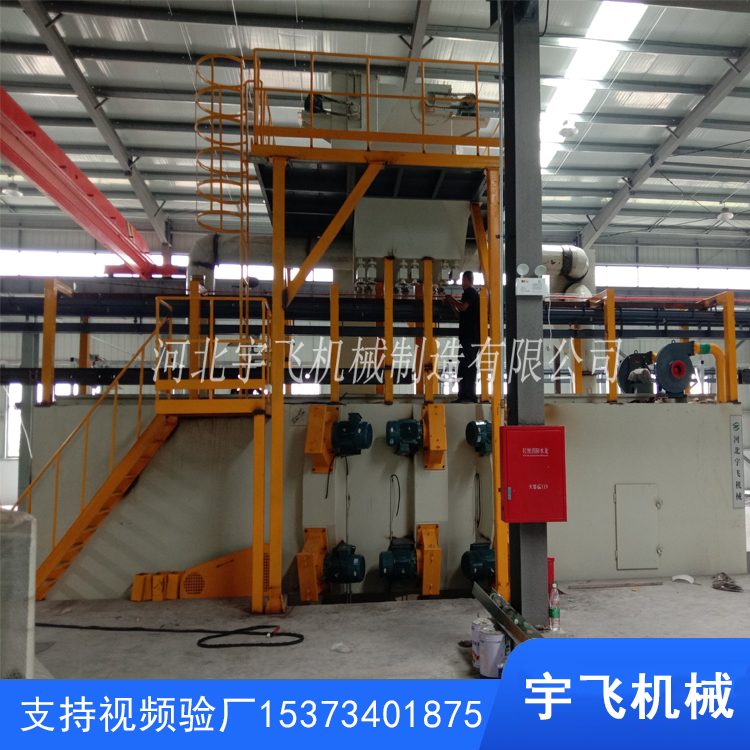

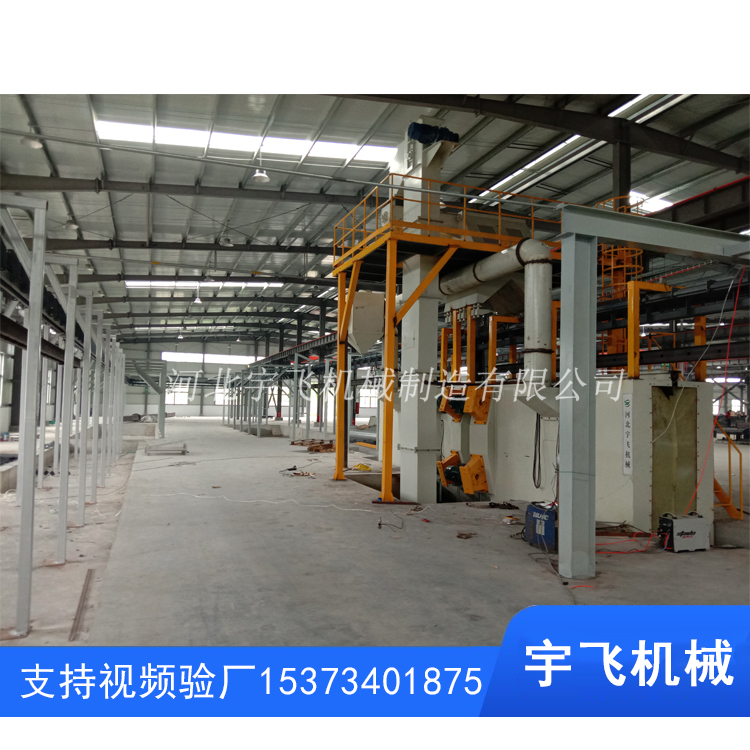

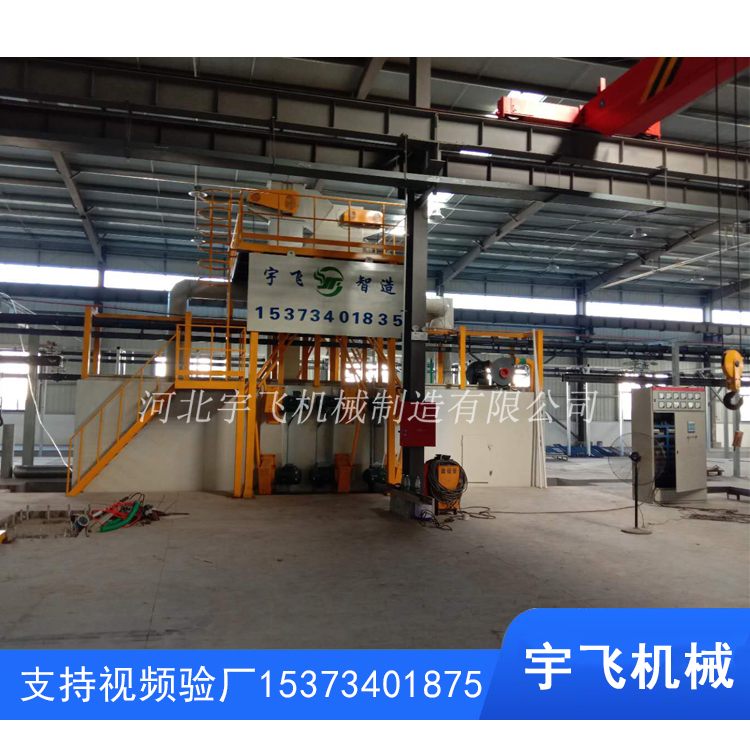

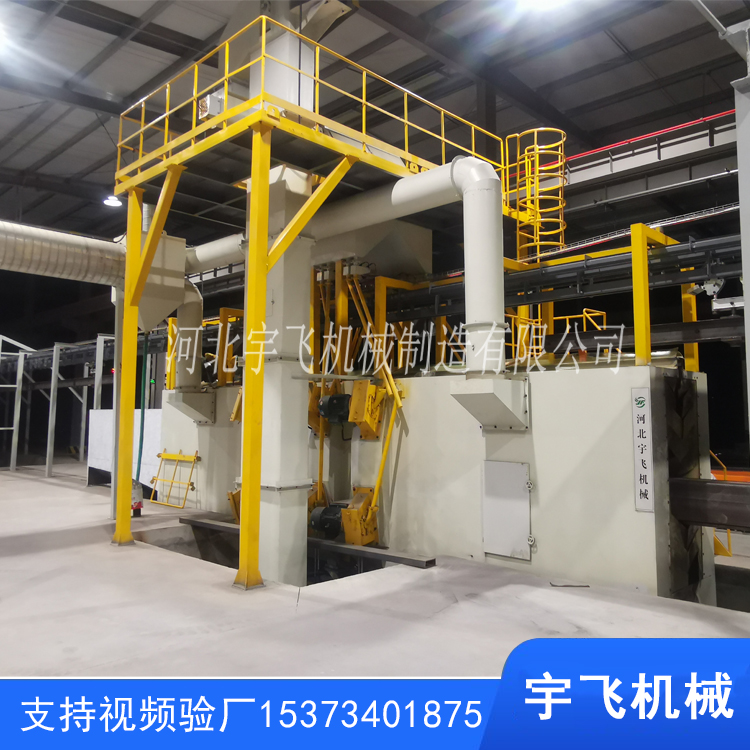

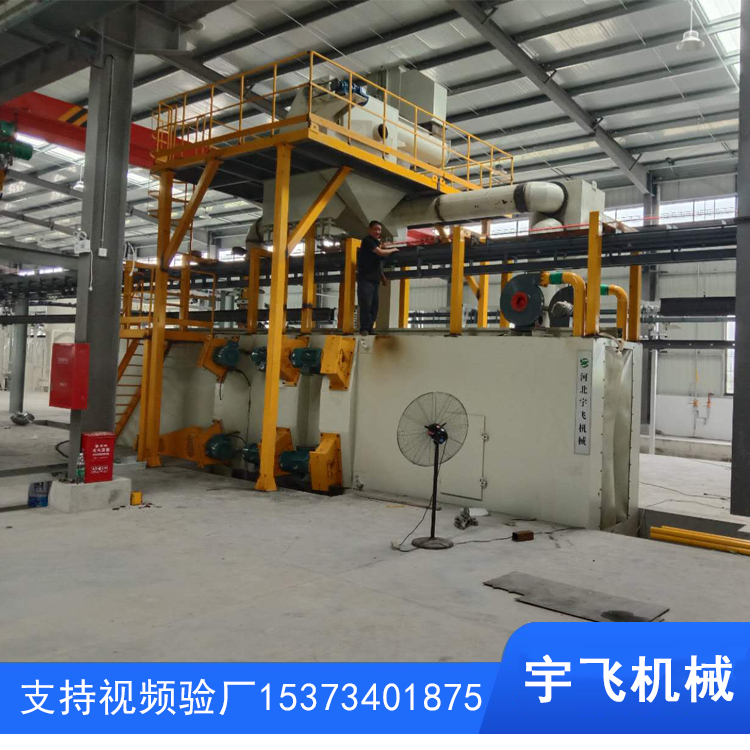

懸鏈?zhǔn)綊佂枨謇頇C(jī)產品介紹:
懸鏈?zhǔn)綊佂枨謇頇C(jī)也是拋丸機里面的一種。懸鏈?zhǔn)綊佂枨謇頇C(jī)適合于小型鑄鐵件、鑄鋼件、鍛件及沖壓件的拋丸清理,特別適合于鍛件、鑄件的清理,以去掉工件表面上的粘砂、鐵銹、氧化皮、污物等,使工件表面呈現金屬本色,消除工件內部應力,提高工件抗疲勞性,增加工件噴漆時的漆膜附著力,并最終達到提高工件表面及內在質量的目的。
適合于多種品種、中小批量鑄鐵件、鑄鋼件、鍛件及鋼結構件的表面處理和拋丸強化,例如發動機缸體缸蓋、電機殼體等清理效果都不錯。同時也是汽車、拖拉機、柴油機、電機閥門等行業的理想選擇。
Product introduction of catenary shot blasting machine.
The catenary shot blasting machine is also a kind of shot blasting machine. The catenary shot blasting machine is suitable for the shot blasting of small iron castings, steel castings, forgings and stamping parts. It is especially suitable for cleaning forgings and castings to remove sticky sand, rust, oxide scale and dirt on the surface of the workpiece. Objects, etc., make the surface of the workpiece appear metallic, eliminate internal stress of the workpiece, improve the fatigue resistance of the workpiece, increase the adhesion of the paint film when the workpiece is painted, and finally achieve the purpose of improving the surface and internal quality of the workpiece.
It is suitable for surface treatment and shot blasting strengthening of various types, small and medium batch iron castings, steel castings, forgings and steel structural parts. For example, the cleaning effect of engine cylinder heads and motor housings is good. It is also an ideal choice for industries such as automobiles, tractors, diesel engines, and motor valves.
技術參數
型號Model |
QP6802 |
QP6804 |
QP6806 |
QP6808 |
QP681 |
QP681L |
QP681L+ |
清理寬度Cleaning width(mm) |
200 |
400 |
600 |
800 |
1000 |
1000 |
1200 |
懸鏈輸送速度Catenary conveyor speed(無極調速continuously variablem/min) |
0.5-2 |
0.5-2 |
0.5-3 |
0.5-6 |
0.5-6 |
0.5-6 |
2-8 |
處理工件高度Handle workpiece height(mm) |
1000 |
1000 |
1500 |
1800 |
2100 |
1800 |
2100 |
拋丸量Shot blasting amount(kg/min) |
4x120 |
8x200 |
8x250 |
8x250 |
12x250 |
16x250 |
24x200 |
首次裝入量The weight of the first steel shot added (kg) |
3000 |
4000 |
4000 |
4500 |
5500 |
7000 |
12000 |
通風量 Ventilation amount (m3/h) |
18000 |
18560 |
19000 |
22550 |
27758 |
28050 |
38000 |
外形尺寸Machine size (mm) |
25170x2500x9015 |
30180x3250x7095 |
30200x3370x6797 |
38000x3370x6797 |
42000x3370x6797 |
46200x3370x6797 |
46200x3370x6797 |
地面以下深度Depth below ground(mm) |
0 |
0 |
1257 |
1850 |
2353 |
2800 |
3100 |
總功率Total Power(kw) |
55 |
78.3 |
155 |
164 |
185 |
275 |
320 |
