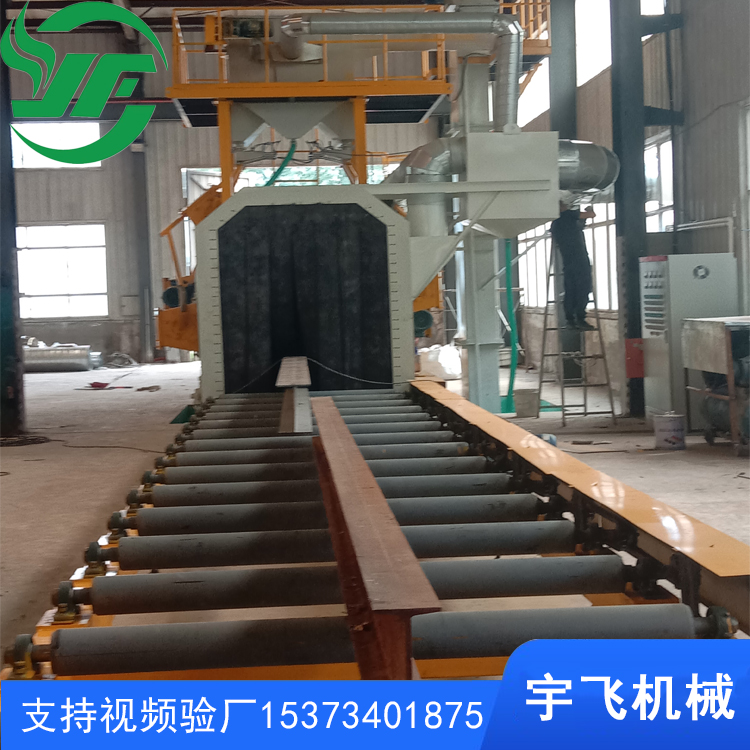

H型鋼輥道式通過拋丸清理機，尺寸可定做

輥道通過拋丸機應用范圍廣泛，主要用于建筑等行業。用于大型工字型鋼、H型鋼尺寸較高的鋼結構件消除應力及表面除銹清理。清理過程中由電氣控制的可調速輸送輥道將鋼結構件或鋼...

歡迎咨詢

13315758887

產品詳情

Q69 roller pass shot blasting machine is a kind of multi-functional pretreatment equipment for cleaning plate, steel structure, profile, steel pipe and so on.In this way, after the steel is treated by shot blasting, the corrosion resistance of the products and metal components can be improved, the fatigue resistance of the steel plate can be improved, and its service life can be prolonged.

項目型號Model	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
有效清理寬度Effective cleaning width（mm）	800	1200	1500	2000	2500	3000	4000
清理工件長度 Length of cleaning workpiece(mm)	1000-1200	1000-1200	1000-1200	1000-1200	1000-1200	1000-1200	1000-1200
輥道輸送速度 Roller conveyor speed（無極調速continuously variable m/min）	0.5-4	0.5-4	0.5-6	0.5-6	0.5-6	0.5-6	0.5-6
清理鋼板厚度Clean the thickness of the steel plate(mm)	3-60	3-60	3-60	3-60	3-60	3-110	4.5-100
拋丸量Shot blasting amount(kg/min)	4x120	4x250	6x250	8x250	8x250	12x250	16x250
首次裝入量The weight of the first steel shot added (kg)	3000	4000	4500	5500	6000	6000	11000
滾刷（刮板）調整高度Roll brush (scraper) to adjust the height(mm)	200	200	350	450	600	850	900
通風量Ventilation amount (m3/h)	18000	18000	18000	20000	28000	30000	40000
外形尺寸Machine size （mm）	12017x2500x6015	12180x2550x7095	15200x3370x7797	18650x3850x9095	18200x3550x9095	24042x6385x7758	30500x7830x11117
地面以下深度Depth below ground(mm)	1937	1616	2257	2800	2353	2800	3170
總功率Total Power（kw）	55	78.3	113.5	176.6	184.55	204.8	293.6
